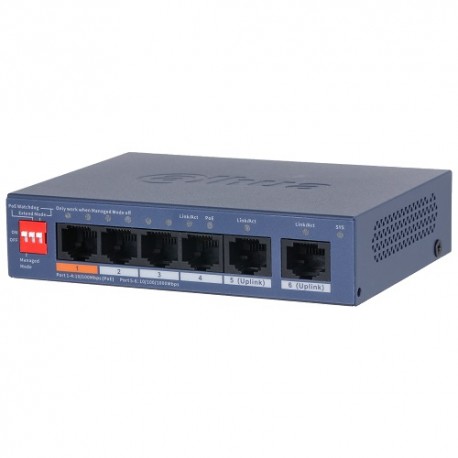

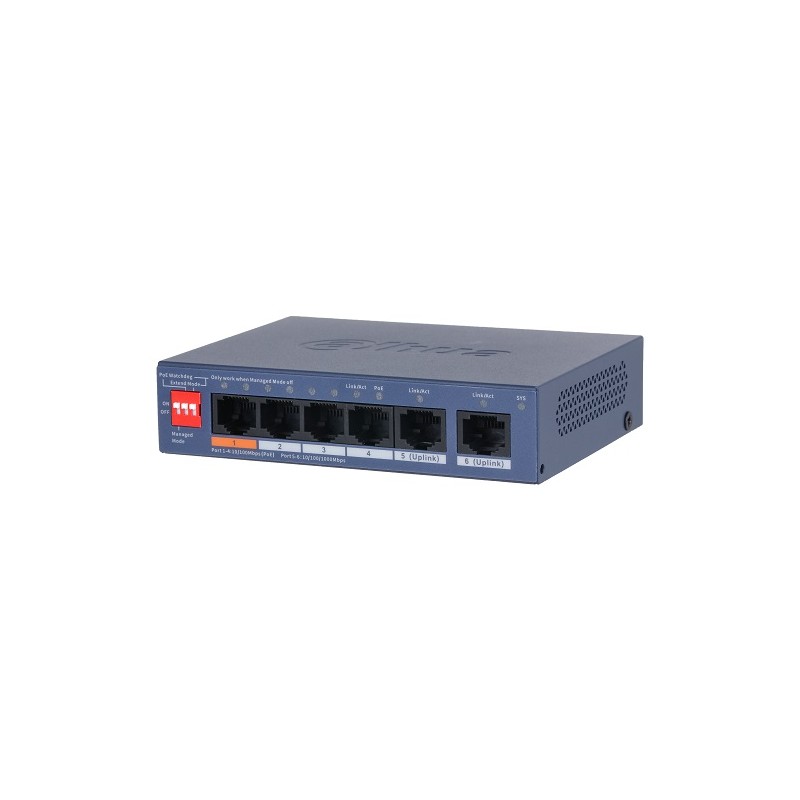

PoE šakotuvas valdomas100Mbps 4portų+2G uplink

6 portų valdomas šakotuvas su 4 portų PoE, 250m, 30-60W.

Model: CS4006-4ET2GT-60
6-Port Cloud Managed Desktop Switch with 4-Port PoE

Overview:

• 4 × RJ45 10/100 Mbps PoE ports, 2 × RJ45 Gigabit ports.
• 60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on orange port.
• DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.
• Wide operating temperature ranging from –10 °C to 55 °C.
• Supports VLAN and loop protection.
• WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.
• Easy config to auto detect and set up network and security systems

Functions:

• Meets the requirements of IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE 802.3az standards.
• Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standards.
• Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
• A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.

Technical Specification:

Included Power Adapter: Yes.
Switching Capacity: 4.8 Gbps.
Packet Forwarding Rate: 3.57 Mpps.
Description of Function Slots: Port 1-4: 4x RJ-45 10/100 Mbps (PoE); Port 5-6: 2x RJ-45 10/100/1000 Mbps (uplink).
PoE: Yes.
Power Supply: External power supply: 53 VDC, 1.22 A.
Operating Temperature: –10°C to +55°C.
Operating Humidity: 10%–90% (RH), non-condensing.
Storage Temperature –40°C to +70°C.
Storage Humidity 5%–95% (RH), non-condensing.
Power Consumption Idling: <3 W; Full load: 65 W.
MTBF: 232.62 years.
Packet Buffer Size: 4 Mbit.
MAC Table Size: 2K.
PoE Protocol: IEEE802.3af; IEEE802.3at; Hi-PoE.
Communication Standard: IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab; IEEE 802.3az.
PoE Power: Port 1-4 < 30 W; Total < 60 W.
PoE Power Consumption Management: Yes; PoE power on/off; turns off PoE if overload is detected.
PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8(V-).
Long Distance PoE Transmission: Yes.
Statics Protection: Air discharge: 8 kV; Contact discharge: 6 kV.
Lighting Protection: Common mode: 6 kV.
Weight: 0.2 kg.
Product Dimensions: 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06")
DIP switch: Yes.
Reset button: 1.
VLAN Function: IEEE 802.1Q VLAN.
VLAN Number: 32.
DHCP Function: DHCP Client.
Equipment Management: Web management; Cloud Management; Logs; Fault Alarm.
