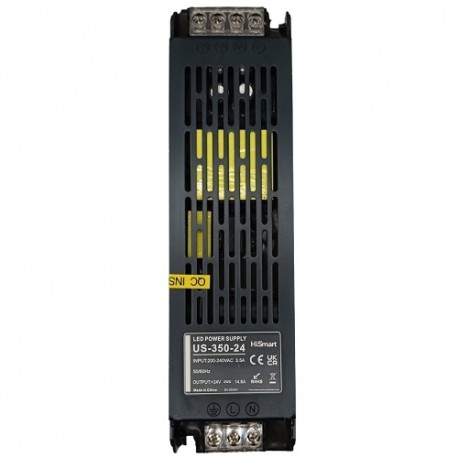

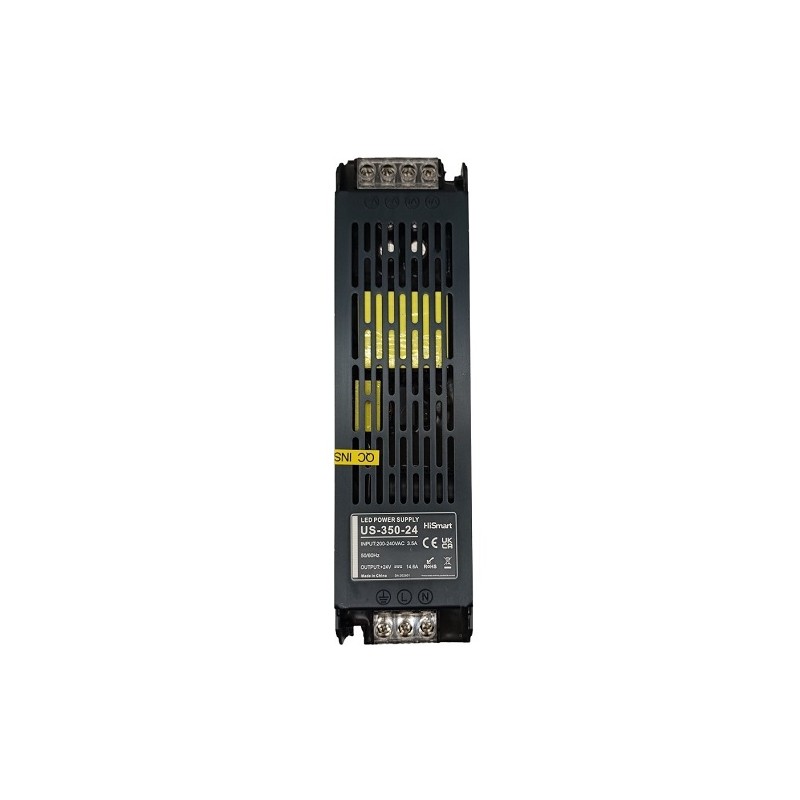

Industrial LED power supply 24V, 14.6A, 350W.
Features:
Slim type switching power supply operating in pulse mode.
Small volume, low weight, high efficiency.
Cooling by free air convection.
Protections: short circuit / overload.
Specifications:
Type: switching power supply.
Input range AC: 200-240V.
Frequency: 50/60 Hz.
Output voltage DC: 24V.
Rated output current: max 14.6A.
Output power: 350.4W.
AC current: 3.5A / 230V.
Ripple and noise: 240mV p-p.
Efficiency: 91%.
Leakage current: <2mA / 240V AC.
Working temperature: -20°C~+50°C.
Working humidity: 20%-90%RH.
Dimension: 220x60x29mm.
Shell material: aluminum.
Weight: 0.5kg.
Warranty: 24 months.
Features:
Slim type switching power supply operating in pulse mode.
Small volume, low weight, high efficiency.
Cooling by free air convection.
Protections: short circuit / overload.
Specifications:
Type: switching power supply.
Input range AC: 200-240V.
Frequency: 50/60 Hz.
Output voltage DC: 24V.
Rated output current: max 14.6A.
Output power: 350.4W.
AC current: 3.5A / 230V.
Ripple and noise: 240mV p-p.
Efficiency: 91%.
Leakage current: <2mA / 240V AC.
Working temperature: -20°C~+50°C.
Working humidity: 20%-90%RH.
Dimension: 220x60x29mm.
Shell material: aluminum.
Weight: 0.5kg.
Warranty: 24 months.
