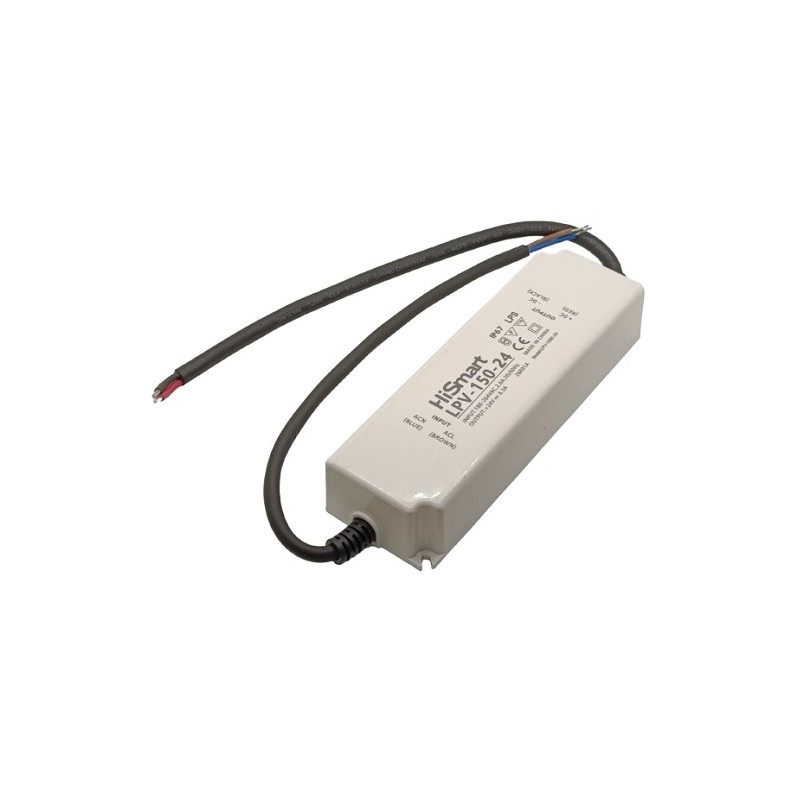

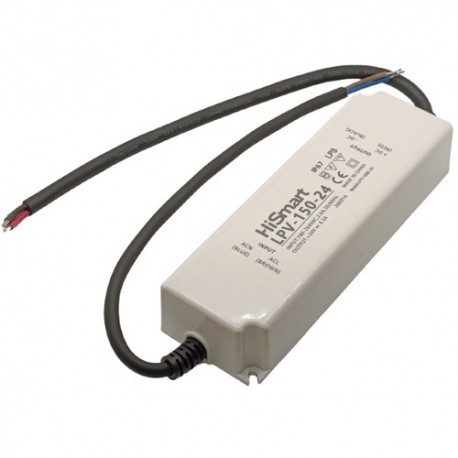

Power supply 24V, 6.3A, 150W, waterproof IP67.
Features:
Small volume, low weight, high efficiency.
Cooling by free air convection.
Protections: short circuit / overload / over voltage.
Fully protected insulated plastic housing. IP67 design for indoor or outdoor installations.
Specifications:
Input range AC: 180-264V. Frequency 50/60 Hz.
Output voltage DC: 24V.
Rated current: max 6.3A.
Rated power: 151.2W.
Ripple and noise: 150mV p-p.
Efficiency: 88%.
Leakage current: <0.25mA/240V AC.
Working temperature: -30°C~+60°C.
Working humidity: 20%-90%RH.
Dimension: 191x63x37.5mm.
Weight: 0.8kg.
Warranty: 24 months.
Features:
Small volume, low weight, high efficiency.
Cooling by free air convection.
Protections: short circuit / overload / over voltage.
Fully protected insulated plastic housing. IP67 design for indoor or outdoor installations.
Specifications:
Input range AC: 180-264V. Frequency 50/60 Hz.
Output voltage DC: 24V.
Rated current: max 6.3A.
Rated power: 151.2W.
Ripple and noise: 150mV p-p.
Efficiency: 88%.
Leakage current: <0.25mA/240V AC.
Working temperature: -30°C~+60°C.
Working humidity: 20%-90%RH.
Dimension: 191x63x37.5mm.
Weight: 0.8kg.
Warranty: 24 months.
