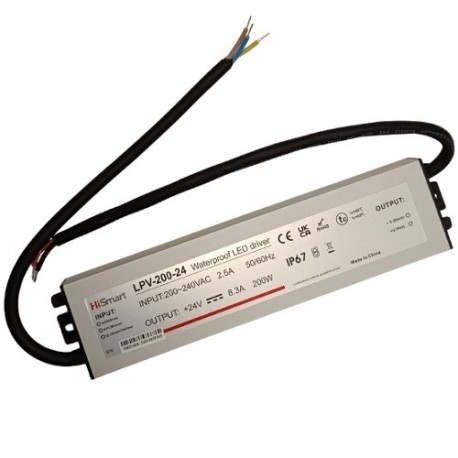

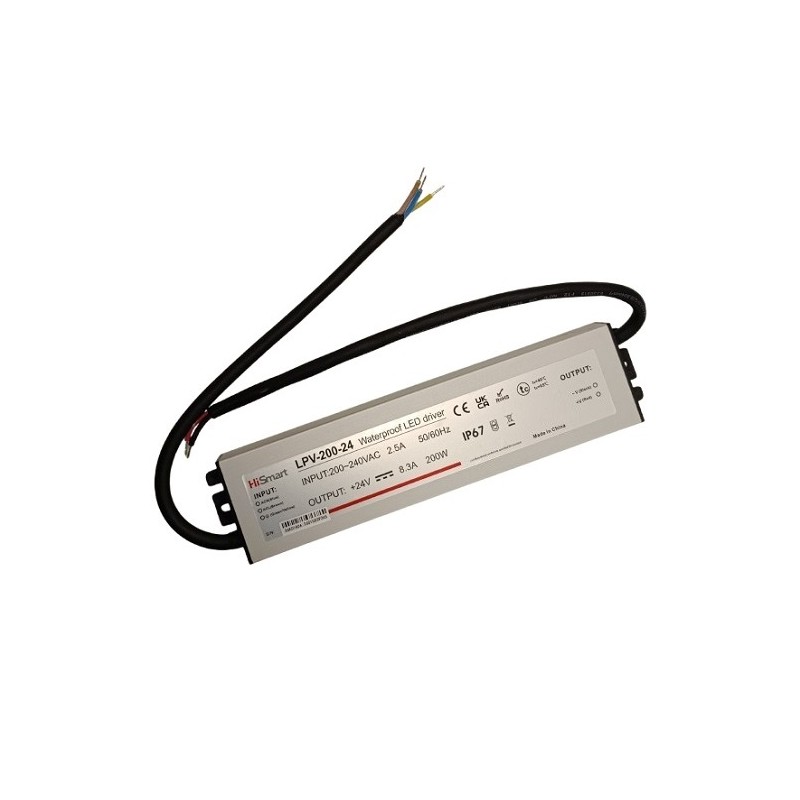

Power supply 24V, 8.3A, 200W waterproof IP67.
Features:
Small volume, low weight, high efficiency.
Cooling by free air convection.
Protections: short circuit / overload / over voltage.
Fully protected insulated aluminum housing. IP67 design for indoor or outdoor installations.
Specifications:
Input range AC: 200-40V. Frequency 50/60 Hz.
Output voltage DC: 24V.
Rated current: max 8.3A.
Rated power: 199.2W.
Ripple and noise: 360mV p-p.
Efficiency: 93%.
Leakage current: <0.75mA/240V AC.
Working temperature: -20°C~+60°C.
Working humidity: 20%-90%RH.
Dimension: 235x54x21 mm.
Weight: 0.5kg.
Warranty: 24 months.
Features:
Small volume, low weight, high efficiency.
Cooling by free air convection.
Protections: short circuit / overload / over voltage.
Fully protected insulated aluminum housing. IP67 design for indoor or outdoor installations.
Specifications:
Input range AC: 200-40V. Frequency 50/60 Hz.
Output voltage DC: 24V.
Rated current: max 8.3A.
Rated power: 199.2W.
Ripple and noise: 360mV p-p.
Efficiency: 93%.
Leakage current: <0.75mA/240V AC.
Working temperature: -20°C~+60°C.
Working humidity: 20%-90%RH.
Dimension: 235x54x21 mm.
Weight: 0.5kg.
Warranty: 24 months.
