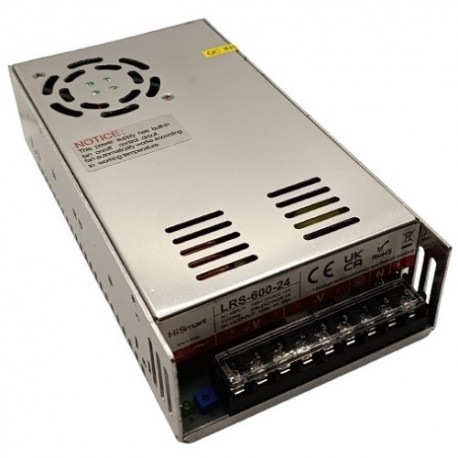

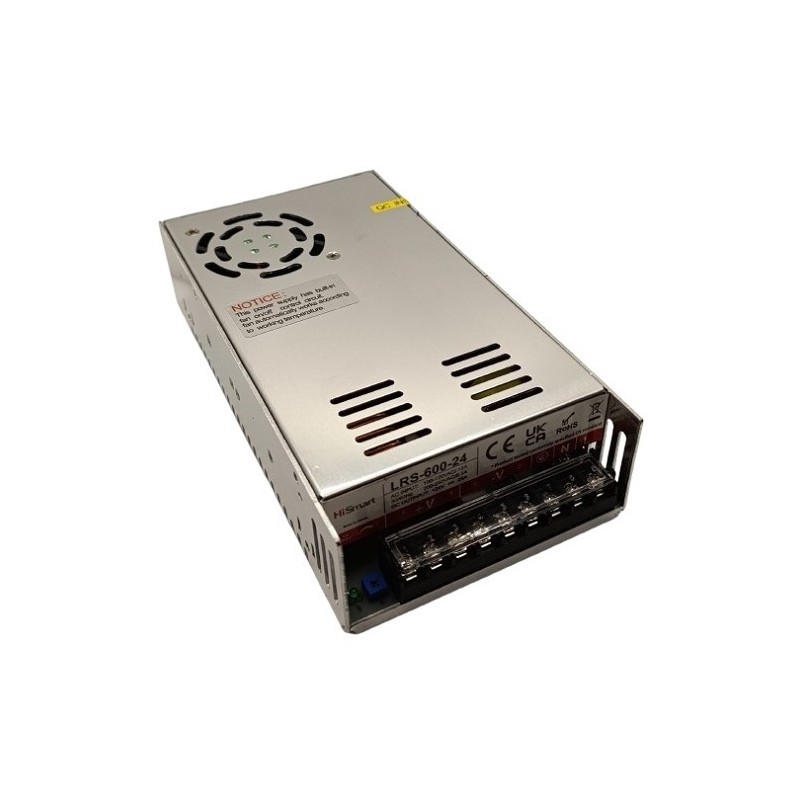

Power supply 24V, 25A, 600W with fan.
Features:
Thin type 50mm profile switching power supply operating in pulse mode.
Small volume, low weight, high efficiency.
Protections: short circuit / over temperature / overload / over voltage.
Forced-air cooling via built-in DC fan with automatic temperature-controlled operation.
Thanks to its ultra-slim design, the unit can be conveniently installed in electrical distribution and automation cabinets where space saving is important.
Suitable for industrial, automation, control, and electrical distribution systems.
Specifications:
Type: switching power supply.
Input range AC: AC 100-240V. Frequency 47-63Hz.
Output voltage DC: 24V.
DC voltage adjustable range: ±10%.
Max.output current: 25A.
Rated power: 600W.
AC current: 12A/110-120V, 5.5A/200-240V.
Ripple and noise: 300mV p-p.
Efficiency: 87%.
Leakage current: <3.5mA / 240V AC.
Working temperature: -10°C~+50°C.
Working humidity: 20%-90%RH.
Dimension: 215x115x50mm.
Weight: 0.9kg.
Warranty: 24 months.
Features:
Thin type 50mm profile switching power supply operating in pulse mode.
Small volume, low weight, high efficiency.
Protections: short circuit / over temperature / overload / over voltage.
Forced-air cooling via built-in DC fan with automatic temperature-controlled operation.
Thanks to its ultra-slim design, the unit can be conveniently installed in electrical distribution and automation cabinets where space saving is important.
Suitable for industrial, automation, control, and electrical distribution systems.
Specifications:
Type: switching power supply.
Input range AC: AC 100-240V. Frequency 47-63Hz.
Output voltage DC: 24V.
DC voltage adjustable range: ±10%.
Max.output current: 25A.
Rated power: 600W.
AC current: 12A/110-120V, 5.5A/200-240V.
Ripple and noise: 300mV p-p.
Efficiency: 87%.
Leakage current: <3.5mA / 240V AC.
Working temperature: -10°C~+50°C.
Working humidity: 20%-90%RH.
Dimension: 215x115x50mm.
Weight: 0.9kg.
Warranty: 24 months.
