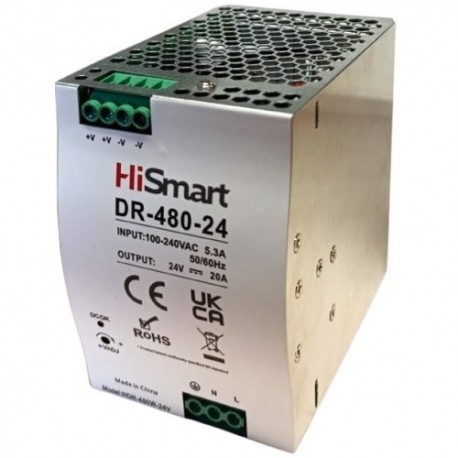

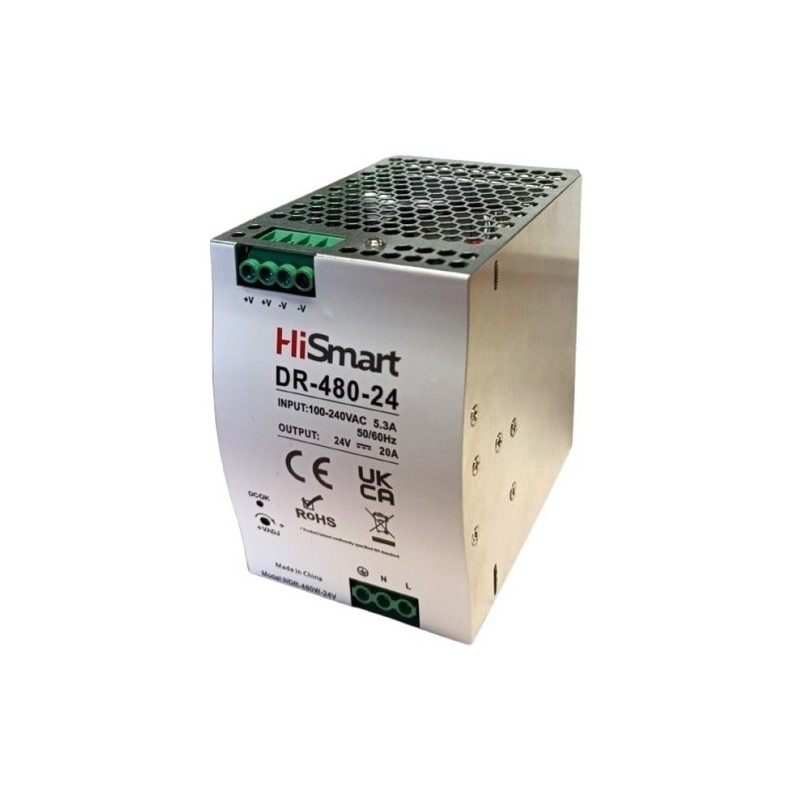

Industrial power supply 24V, 20A, 480W, DIN.
Features:
Aluminum high-power industrial switching power supply designed for mounting on a standard 35 mm DIN rail.
Protection: overload, overtemperature, overvoltage, and short-circuit protection.
Cooling by free air convection. The metal casing improves heat dissipation.
No load consumption: < 0.3W.
Complies with the industrial immunity standards IEC 61000-6-2 (BS EN/EN61000-6-2).
Suitable for industrial control systems, factory automation, semiconductor manufacturing equipment, electromechanical equipment, etc.
Specifications:
Type: switching power supply.
Input range AC: 90-264V.
Frequency: 47-63Hz.
Output voltage DC: 24V.
Rated current: 20A.
Rated power: 480.8W.
AC current: 4.8A/115V, 2.1A/230V.
Ripple and noise: 240mvp-p.
Efficiency: 92%.
Leakage current: <3.5mA/220V AC.
Working temperature: -20°C~+60°C.
Working humidity: 20%-90%RH.
Dimension: 85.5x125.2x128.5 mm.
Weight: 1.2kg.
Warranty: 24 months.
Features:
Aluminum high-power industrial switching power supply designed for mounting on a standard 35 mm DIN rail.
Protection: overload, overtemperature, overvoltage, and short-circuit protection.
Cooling by free air convection. The metal casing improves heat dissipation.
No load consumption: < 0.3W.
Complies with the industrial immunity standards IEC 61000-6-2 (BS EN/EN61000-6-2).
Suitable for industrial control systems, factory automation, semiconductor manufacturing equipment, electromechanical equipment, etc.
Specifications:
Type: switching power supply.
Input range AC: 90-264V.
Frequency: 47-63Hz.
Output voltage DC: 24V.
Rated current: 20A.
Rated power: 480.8W.
AC current: 4.8A/115V, 2.1A/230V.
Ripple and noise: 240mvp-p.
Efficiency: 92%.
Leakage current: <3.5mA/220V AC.
Working temperature: -20°C~+60°C.
Working humidity: 20%-90%RH.
Dimension: 85.5x125.2x128.5 mm.
Weight: 1.2kg.
Warranty: 24 months.
