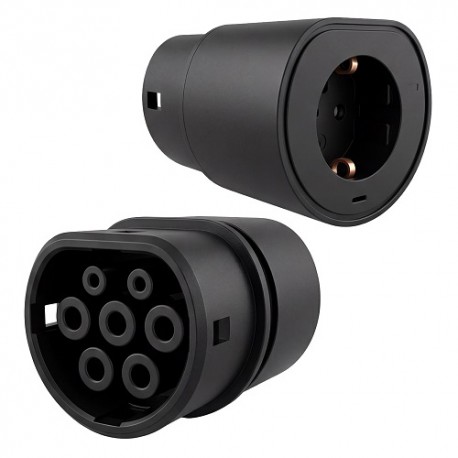

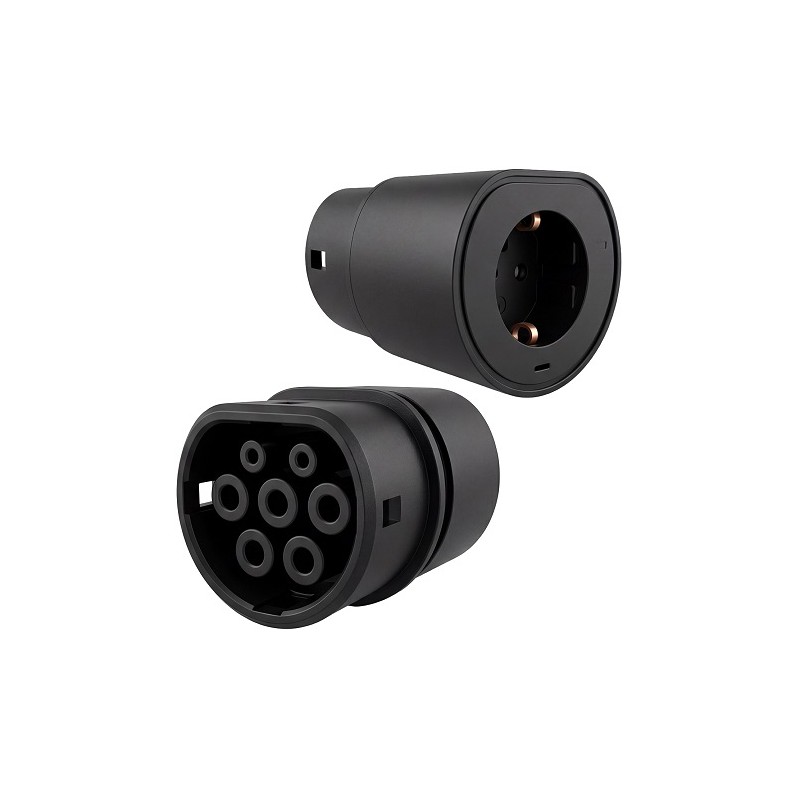

V2L Discharge Adapter Type 2 to EU Schuko Socket

The Type 2 to Schuko EV discharge adapter is designed for use with electric vehicles that support the V2L function. The adapter allows you to use the energy stored in the EV battery to power 230V electrical appliances through a standard European Schuko socket.

Features:
Compact V2L (Vehicle-to-Load) discharge adapter designed to convert energy stored in the electric vehicle battery into AC power. This device allows standard household appliances to be powered directly from the vehicle’s Type 2 socket while travelling, camping or outdoors.
The adapter connects to the vehicle’s Type 2 charging socket.
The adapter features three internal resistance levels (2000 / 680 / 75 Ohm), allowing it to be used with different electric vehicles that support the V2L function.
The high-quality housing made of flame-retardant plastic and pure copper contacts ensure excellent electrical conductivity and protection against overheating.
An integrated light indicator shows the operating status of the adapter.


Technical specifications:
Application: V2L (Vehicle-to-Load) power output from an electric vehicle.
Vehicle connector: Type 2 (IEC 62196).
Output socket: EU Schuko.
Rated current: max. 16 A.
Operating voltage: 230V AC (single-phase).
Maximum discharge power: approx. 3.6 kW.
Resistance: 2000 Ohm / 680 Ohm / 75 Ohm.
Housing: flame-retardant PA66 plastic.
Contact material: copper.
Indicator: Yes.
Protection rating: IP20 (when not in use) / IP55 (when connected).
Colour: black.


Warranty: 24 months.

Note: The adapter works only with electric vehicles that support V2L power output via a Type 2 connector.
