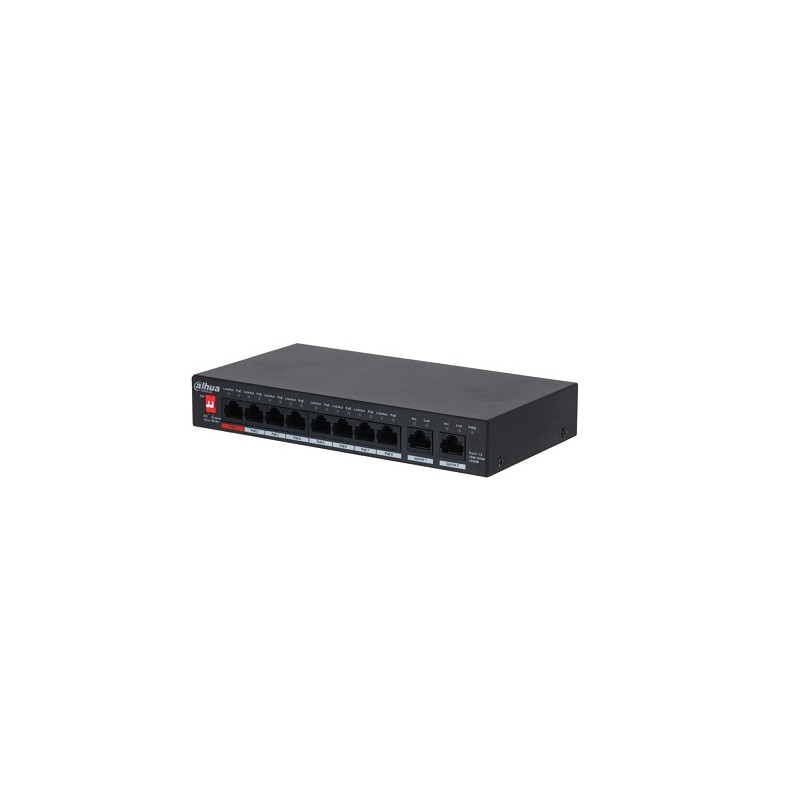

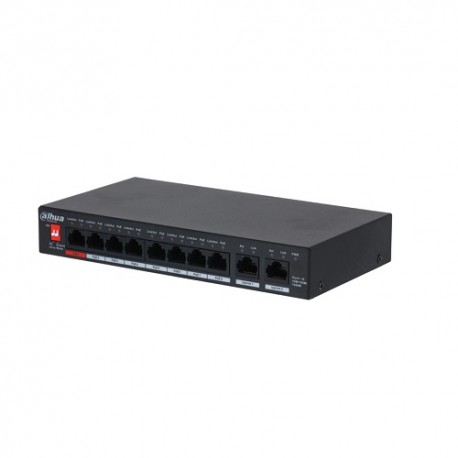

8-Port PoE Switch PFS3010-8GT-96 View larger

8-Port PoE Switch PFS3010-8GT-96

3010-8GT-96

New product

38 Items

€216.59 Tax included

Pristatysime per 2 dienas

Add to wishlist

More info

Features:

• 10-port unmanaged gigabit switch with 8-port PoE.
• 8-pin simultaneous PoE power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time.
• Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.
• 2 types of transmission modes (Extend Mode On/ Extend Mode Off).
• The red port supports the IEEE802.3bt and the Hi-PoE standards, max 90W.
• Intelligent PoE controls over power consumption and offers real-time monitoring.
• Innovative PoE Watchdog can be switched on by dialing or turning on the WEB page switch.
• Supports desktop-mount installation.
• Supports IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x standards.
• Conforms to IEEE802.3af and IEEE802.3at power supply standard.

Technical Specifications:

• Model PFS3010-8GT-96.
• Ethernet Port: 8x 10/100/1000Mbps, Uplink 2x 10/100/1000Mbps; PoE ports: 8x 10/100/1000Mbps.
• PoE Power consumption: Full loadl = 96W, Idling: 3W.
• Power consumption management: yes.
• PoE PIN Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-).
• Communication standards: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab.
• PoE protocol: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt.
• Switching capacity: 20 Gbps.
• Packet forwarding rate: 14.88 Mpps.
• Packet buffer memory: 1.5 Mbit.
• MAC Table size: 4K.
• Long distance PoE: 250 m long distance PoE transmission.
• Application humidity: 5%~95%.
• Power supply: 48V - 57V DC.
• Lightning Protection Common Mode: 4 kV.
• Differential mode: 2 kV.
• ESD Protection Air discharge: 8 kV.
• Contact discharge: 6 kV.
• Working temperature: -10°C~55°C.
• Weight: 0.5 kg.
• Dimensions(W×D×H): 190 mm × 100 mm × 30 mm.




Transmission Performance:
Switch power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance < 10ohm/100m

Cable(m) - Load Capacity(W) - Bandwidth(Mbps)
IEEE802.3bt 90W:
100m Cable; 71.3W Load Capacity; 1000Mbps Bandwidth.
150m Cable; 62W Load Capacity; 10Mbps Bandwidth.
200m Cable; 51W Load Capacity; 10Mbps Bandwidth.
250m Cable; 40W Load Capacity; 10Mbps Bandwidth.
Hi-PoE 60W:
100m Cable; 53W Load Capacity; 1000Mbps Bandwidth.
150m Cable; 50W Load Capacity; 10Mbps Bandwidth.
200m Cable; 47W Load Capacity; 10Mbps Bandwidth.
250m Cable; 37W Load Capacity; 10Mbps Bandwidth.
IEEE802.3at 30W:
100m Cable; 25.5W Load Capacity; 1000Mbps Bandwidth.
150m Cable; 25.5WLoad Capacity; 10Mbps Bandwidth.
200m Cable; 25.5WLoad Capacity; 10Mbps Bandwidth.
250m Cable; 25.5WLoad Capacity; 10Mbps Bandwidth.

Note: The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
