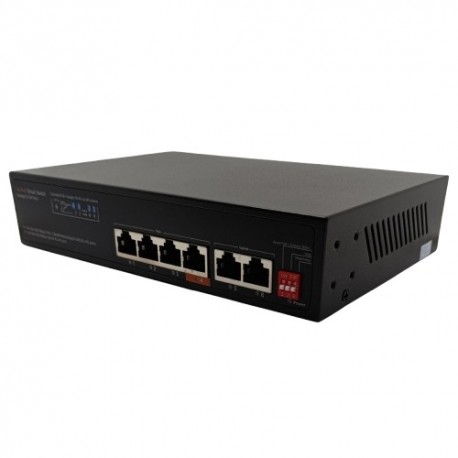

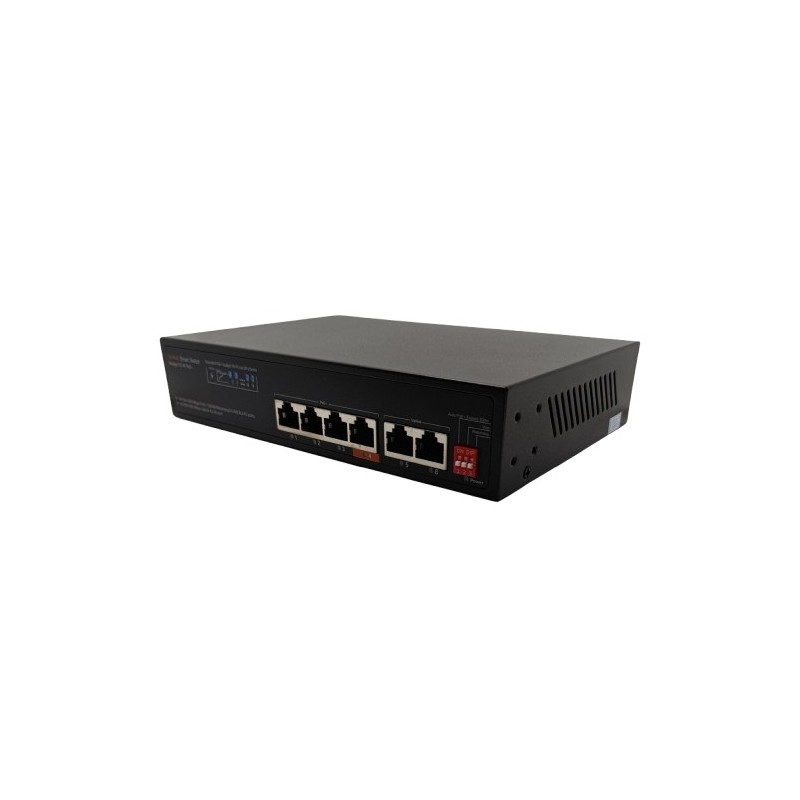

PoE switch 4ch 1000Mbps +2G uplink

Unmanaged PoE Switch 4 Ports 1000M with 2 ports uplink 1000M.


Features:
4x 10/100/1000M PoE ports, 2x 10/100/1000M RJ45uplink ports, ports 1-4 support IEEE 802.3af/at, Port 4 supports IEEE 802.3AF/AT/BT Max. 60W.
Standard PoE power output is 15.4W per port, maximum power: 30W per port, total power 65W.
With DIP switch.
AI Extend mode: transmission up to 300 meters, single port speed is automatically reduced (up to 10 Mbps); other ports maintain 1000 Mbps speed up to 100 meters.
VLAN mode supports isolation and VLAN for each of the 1-4 PoE ports.
PoE Watchdog / Auto Recovery mode for ports 1-4 supports AI-PoE network self-healing, automatically resolves camera operation issues and reduces maintenance needs.
Built-in power supply, power cable included.


Specifications:
Interface: 4x 10/100/1000Mbps Base-TX PoE ports (data/power), 2x 10/100/1000Base-T/TX uplink RJ45 ports (data only).
Network Protocol:
IEEE802.3 10BASE-T.
IEEE802.3i 10Base-T.
IEEE802.3u 100Base-TX.
IEEE802.3ab 1000Base-T.
IEEE802.3x.
Input voltage: 100-240V AC, 50-60Hz.
Power pinout: default: 1/2(+), 3/6(-).
PoE standards: IEEE802.3AF/AT.
MAC address table: 2K.
Buffer memory: 768K.
Twisted Pair Transmission:
10BASE-T: Cat5 UTP (=300 meter).
100BASE-TX: Cat5 or later UTP (=100 meter).
Maximum power: 30W per port when using only one port; IEEE802.3af/at.
Average power: 15.4W per port.
Total power: 65W.
Power consumption: standby <2W.
LED indicators: power; network.
Built-in power supply: AC100–240V, 50–60Hz, 120W.
Operating temperature: -20°C ~ +55°C.
Operating humidity: 5–90% RH (non-condensing).
Dimensions: 195x130x40 mm.
Weight: 720g.
Installation: desktop / wall-mounted.
Protection level: IP30.
Mechanical Properties: IEC61000-4-2 (ESD) (electrostatic discharge protection) ±8kV contact discharge, ±15kV air discharge, IEC61000-4-5 (surge protection) Power:CM±4kV/DM±2kV; Port: ±4kV.
Certification: CCC; CE, CE/LVD EN60950; FCC Part 15 Class B; RoHS.


Warranty: 24 months.
