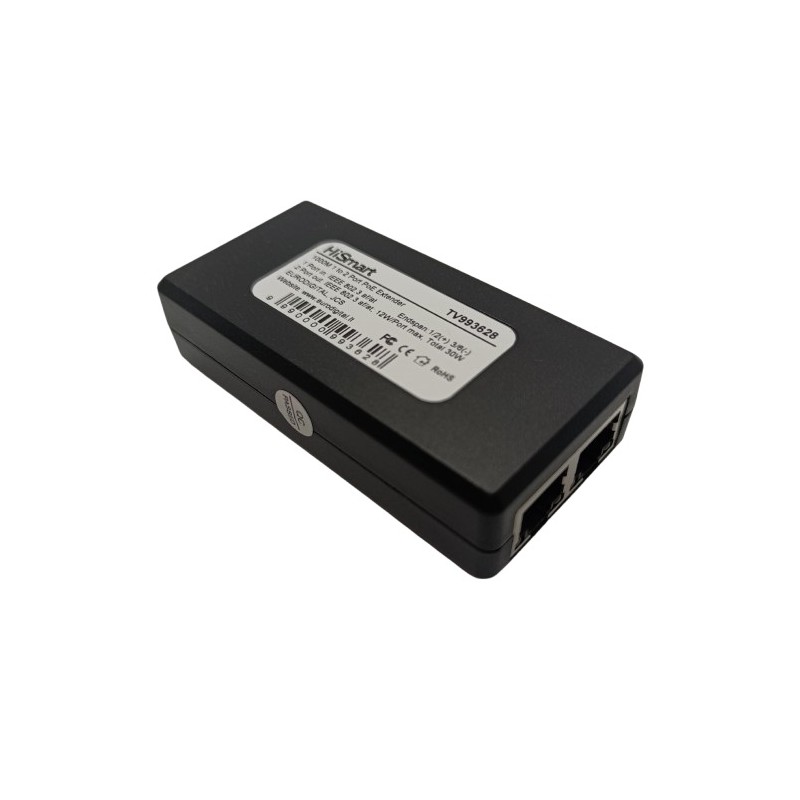

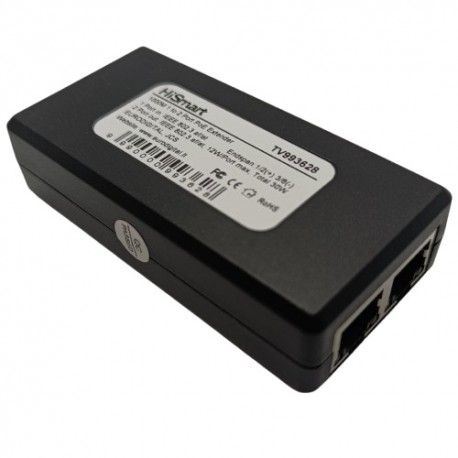

PoE 10/100/1000M Extender 100m, 15W

PoE 10/100/1000M Extender 100m (1 input + 2 output ports)


Features:
PoE and LAN extender for 100 meters. Transmits Ethernet data and PoE power.
10/100/1000M RJ45, PoE output power 15.4W/30W.
Supports two PoE power supply types 1,2(+)/3,6(-) or 4,5(+)/7,8(-).
The network and power supply can have an extended transmission distance of 100 meters.
Compliant with IEEE802.3AF/AT PoE standards.


Specifications:
PoE input: 1x 10/100/1000M RJ45 connector.
PoE output: 2x 10/100/1000M RJ45 connector.
Power pin assignment: End-span 1,2(+)/3,6(-) or Mid-span 4,5(+)/7,8(-).
Network protocols and standards: IEEE802.3AF; IEEE802.3AT; IEEE 802.3i 10BASET, IEEE 802.3u 100BASET, IEEE 802.3x Flow Control, IEEE 802.3af DTE Power via MDI.
Network Medium: Cat5 or more UTP (< 100 meter).
Working temperature: -20°C~+55°C.
Working Humidity: 10%~90% (non-condensing).
LED indicators: Power; Network; PoE working status.
Dimensions: 85x40x22 mm.
Safety: CE, FCC, RoHS.


Warranty: 24 months.
