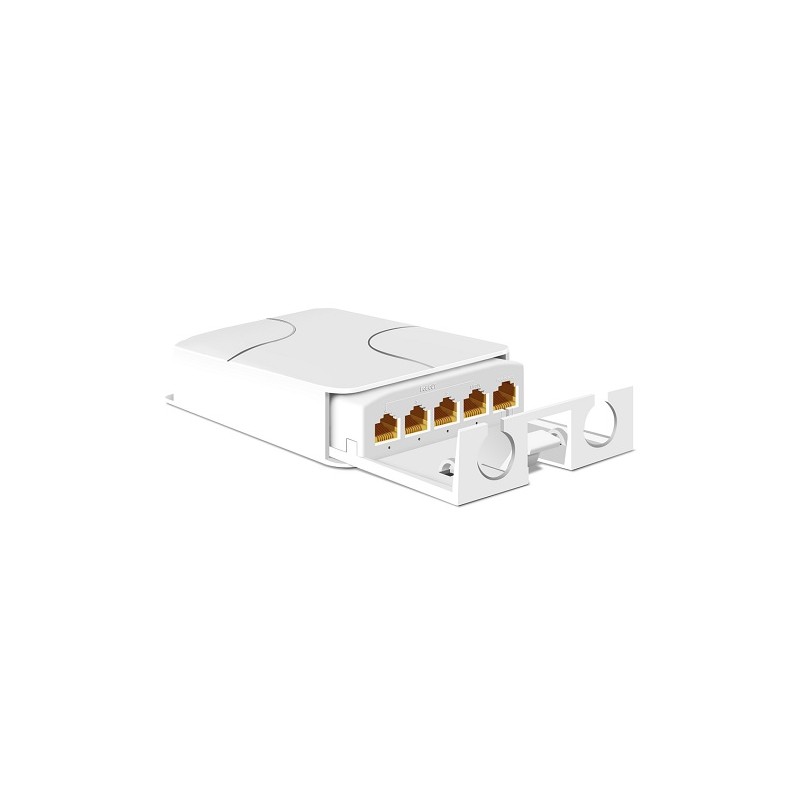

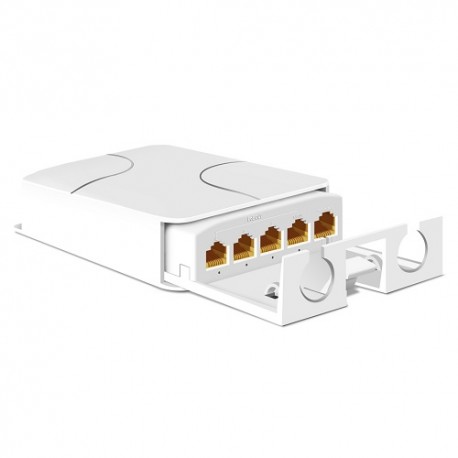

PoE 10/100/1000M Extender, 100m

PoE 10/100/1000M Extender 100m (1 input + 4 output ports), waterproof


Features:
PoE 1000M extender for 100 meters. Transmits Ethernet data and PoE power.
Supports VLAN/Port Isolation mode. Extend mode up to 250m at 10/100 Mbps.
10/100/1000M RJ45 ports.
PoE output power for 2-4 PoE output ports max 30W/port, max 60W for PoE first output port; whole power 90W.
Supports PoE power supply types 1,2(+)/3,6(-) or 4,5(+)/7,8(-).
Compliant with IEEE802.3AF/AT PoE standards.


Specifications:
PoE input: 1x 10/100/1000M RJ45 connector.
PoE output: 4x 10/100/1000M RJ45 connector.
Power pin assignment: End-span 1,2(+)/3,6(-) or Mid-span 4,5(+)/7,8(-).
Network standards: IEEE802.3; IEEE 802.3u; IEEE 802.3x.
PoE standards: IEEE802.3AF; IEEE802.3AT.
Mac address table: 2k.
Working temperature: -10°C~+55°C.
LED indicators.
Dimensions: 129x90x30mm.
Weight: 80g.


Warranty: 24 months.
