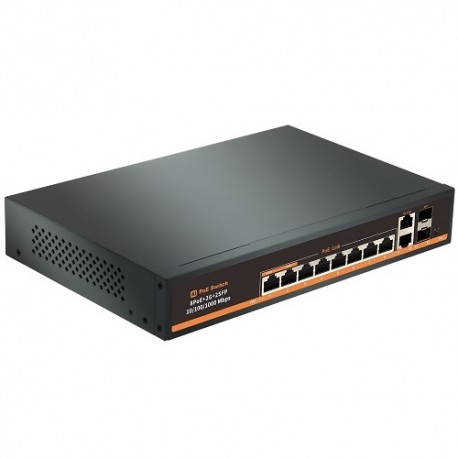

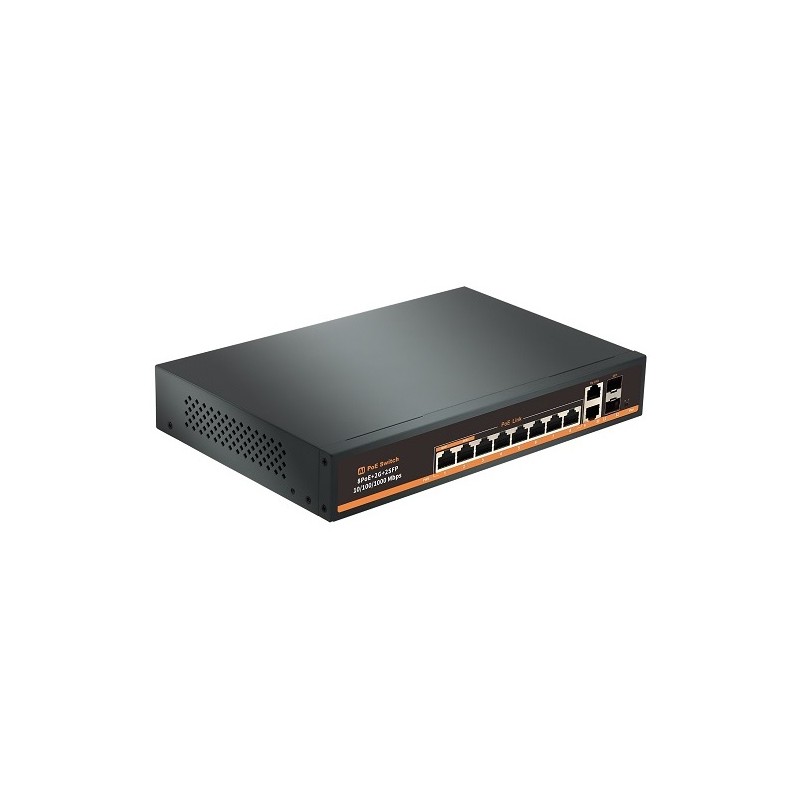

8-port 1000M PoE switch with 2x 1000M uplink ports and 2x 1000M SFP ports.
Features:
The PoE switch has 8x 10/100/1000Mbps PoE ports, 2x 10/100/1000Mbps RJ45 uplink ports, and 2x 100/1000Mbps SFP ports; ports 1-8 support the IEEE802.3af/at standard.
The standard PoE output power is 15.4W per port, maximum power is 30W per port, with a total power budget of 120W.
Equipped with a DIP switch (Standard / VLAN).
Virtual LAN mode (VLAN) supports isolation of each PoE port.
AI Watchdog mode supports AI-PoE self-recovery functionality, automatically solving device operation issues.
Supports IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
All port supported by MDI/MDIX auto flip and self negotiation.
Priority data traffic management (QoS) on ports 1-2.
Built-in 6kV surge protection for network ports.
Integrated power supply (52V / 2.3A), power cable included.
Technical Specifications:
Ports: 8x 10/100/1000Mbps PoE ports; 2x 10/100/1000Mbps RJ45 uplink ports; 2x 100/1000Mbps SFP ports.
Network protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at.
Input voltage: 110-240V AC.
PoE pin assignment: default mode: 1/2(+), 3/6(-).
PoE standards: IEEE802.3af/at.
MAC address table: 2K.
Forwarding rate: 100Mbps: 148800 pps; 1000Mbps: 1488000 pps.
Supported cable type: UTP Cat5e or newer.
Maximum power: 30W per port when using a single port; IEEE802.3af/at.
Standard power: 15.4W per port.
Switching capacity: 12Gbps.
PoE power transmission distance: 100m.
Total power budget: 120W (52V, 2.3A).
LED indicators: power; network.
Built-in power supply: AC110-240V, 120W.
Operating temperature: -10°C ~ +55°C.
Operating humidity: 10-90% RH.
Dimensions: 270 x 180 x 44 mm.
Weight: 1.5kg.
Mounting type: rack mounting.
Warranty: 24 months.
Features:
The PoE switch has 8x 10/100/1000Mbps PoE ports, 2x 10/100/1000Mbps RJ45 uplink ports, and 2x 100/1000Mbps SFP ports; ports 1-8 support the IEEE802.3af/at standard.
The standard PoE output power is 15.4W per port, maximum power is 30W per port, with a total power budget of 120W.
Equipped with a DIP switch (Standard / VLAN).
Virtual LAN mode (VLAN) supports isolation of each PoE port.
AI Watchdog mode supports AI-PoE self-recovery functionality, automatically solving device operation issues.
Supports IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
All port supported by MDI/MDIX auto flip and self negotiation.
Priority data traffic management (QoS) on ports 1-2.
Built-in 6kV surge protection for network ports.
Integrated power supply (52V / 2.3A), power cable included.
Technical Specifications:
Ports: 8x 10/100/1000Mbps PoE ports; 2x 10/100/1000Mbps RJ45 uplink ports; 2x 100/1000Mbps SFP ports.
Network protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at.
Input voltage: 110-240V AC.
PoE pin assignment: default mode: 1/2(+), 3/6(-).
PoE standards: IEEE802.3af/at.
MAC address table: 2K.
Forwarding rate: 100Mbps: 148800 pps; 1000Mbps: 1488000 pps.
Supported cable type: UTP Cat5e or newer.
Maximum power: 30W per port when using a single port; IEEE802.3af/at.
Standard power: 15.4W per port.
Switching capacity: 12Gbps.
PoE power transmission distance: 100m.
Total power budget: 120W (52V, 2.3A).
LED indicators: power; network.
Built-in power supply: AC110-240V, 120W.
Operating temperature: -10°C ~ +55°C.
Operating humidity: 10-90% RH.
Dimensions: 270 x 180 x 44 mm.
Weight: 1.5kg.
Mounting type: rack mounting.
Warranty: 24 months.
