New
View larger
View larger
More info

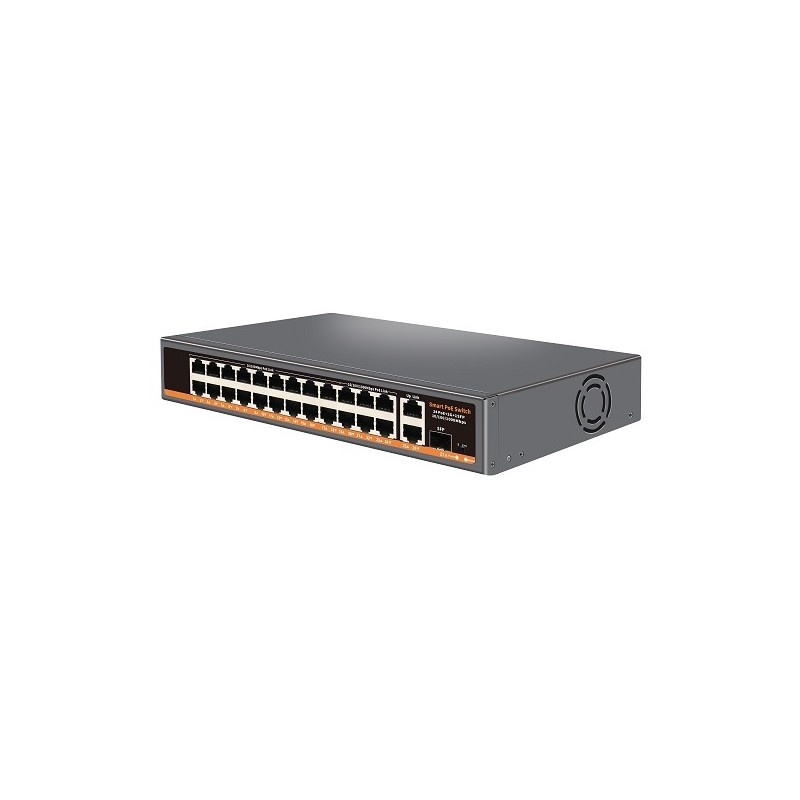

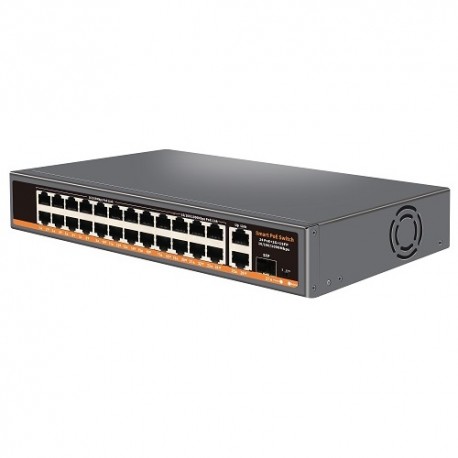

18-port 100M PoE and 6-port 1000M PoE switch with 2x 1000M uplink ports and 1x 1000M SFP ports.
Features:
The PoE switch has 18x 10/100Mbps PoE ports, 6x 10/100/1000Mbps PoE ports, 2x 10/100/1000Mbps RJ45 uplink ports, and 1x 100/1000Mbps SFP port; ports 1-24 support the IEEE802.3af/at standard.
The standard PoE output power is 15.4W per port, maximum power is 30W per port, with a total power budget of 400W.
Equipped with a DIP switch (Standard / Extend+VLAN).
Virtual LAN mode (VLAN) supports isolation of each PoE port.
AI Watchdog mode supports AI-PoE self-recovery functionality, automatically solving device operation issues.
Supports IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
All ports supported by MDI/MDIX auto flip and self negotiation.
Built-in 6kV surge protection for network ports.
Integrated power supply (52V / 7.7A), power cable included.
Technical Specifications:
Ports: 18x 10/100/1000Mbps PoE ports; 6x 10/100/1000Mbps PoE ports; 2x 10/100/1000Mbps RJ45 uplink ports; 1x 100/1000Mbps SFP port.
Network protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at.
Input voltage: 110-240V AC.
PoE standards: IEEE802.3af/at.
MAC address table: 2K.
Forwarding rate: 10Mbps: 14880pps; 100Mbps: 148800pps; 1000Mbps: 1488000pps.
Supported cable type: UTP Cat5e or newer.
Maximum power: 30W per port; IEEE802.3af/at.
Standard power: 15.4W per port.
Switching capacity: 21.6Gbps.
PoE power transmission distance: 250m.
Total power budget: 400W (52V, 7.7A).
LED indicators: power; network, Extend mode.
Built-in power supply: AC110-240V, 400W.
Operating temperature: -10°C ~ +55°C.
Operating humidity: 10-90% RH.
Dimensions: 270 x 181 x 44 mm.
Weight: 2kg.
Mounting type: rack mounting.
Warranty: 24 months.
Features:
The PoE switch has 18x 10/100Mbps PoE ports, 6x 10/100/1000Mbps PoE ports, 2x 10/100/1000Mbps RJ45 uplink ports, and 1x 100/1000Mbps SFP port; ports 1-24 support the IEEE802.3af/at standard.
The standard PoE output power is 15.4W per port, maximum power is 30W per port, with a total power budget of 400W.
Equipped with a DIP switch (Standard / Extend+VLAN).
Virtual LAN mode (VLAN) supports isolation of each PoE port.
AI Watchdog mode supports AI-PoE self-recovery functionality, automatically solving device operation issues.
Supports IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
All ports supported by MDI/MDIX auto flip and self negotiation.
Built-in 6kV surge protection for network ports.
Integrated power supply (52V / 7.7A), power cable included.
Technical Specifications:
Ports: 18x 10/100/1000Mbps PoE ports; 6x 10/100/1000Mbps PoE ports; 2x 10/100/1000Mbps RJ45 uplink ports; 1x 100/1000Mbps SFP port.
Network protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at.
Input voltage: 110-240V AC.
PoE standards: IEEE802.3af/at.
MAC address table: 2K.
Forwarding rate: 10Mbps: 14880pps; 100Mbps: 148800pps; 1000Mbps: 1488000pps.
Supported cable type: UTP Cat5e or newer.
Maximum power: 30W per port; IEEE802.3af/at.
Standard power: 15.4W per port.
Switching capacity: 21.6Gbps.
PoE power transmission distance: 250m.
Total power budget: 400W (52V, 7.7A).
LED indicators: power; network, Extend mode.
Built-in power supply: AC110-240V, 400W.
Operating temperature: -10°C ~ +55°C.
Operating humidity: 10-90% RH.
Dimensions: 270 x 181 x 44 mm.
Weight: 2kg.
Mounting type: rack mounting.
Warranty: 24 months.
