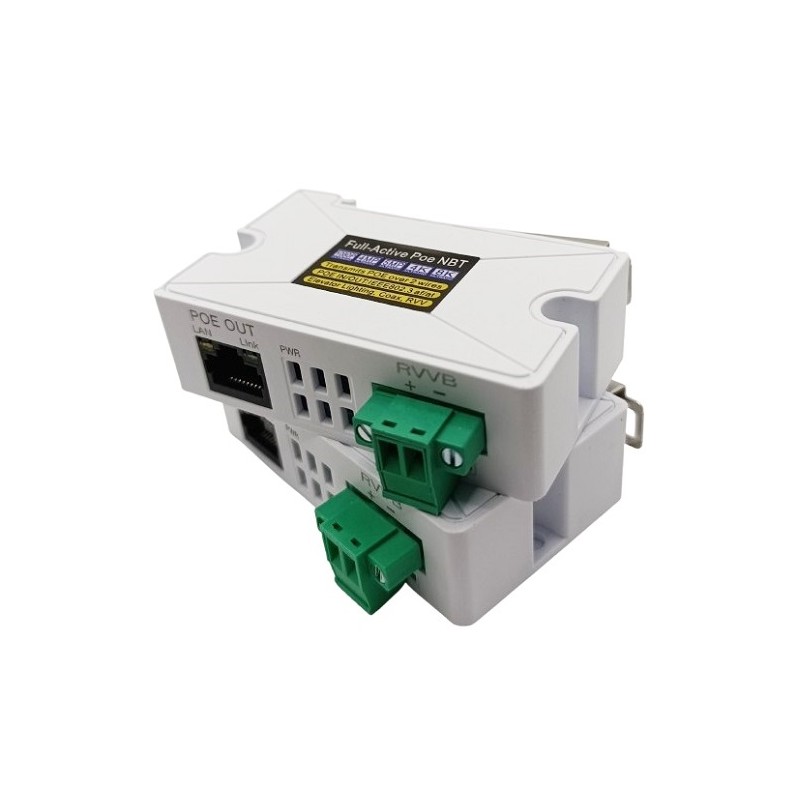

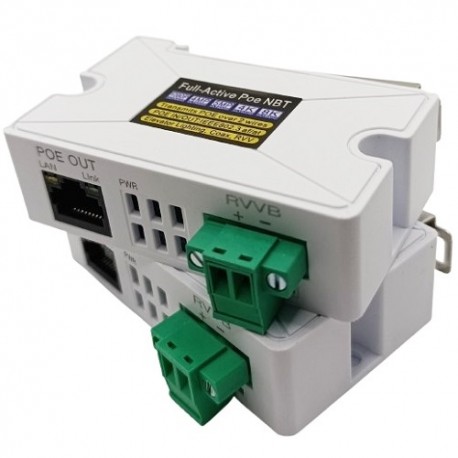

PoE 10/100M 2-Wire Network Extender 200m

PoE 10/100M network extender over a two-wire cable, up to 200 m.
The set includes a PoE transmitter and a PoE receiver. Designed to transmit Ethernet data and PoE power over long distances using an existing two-wire cable. Suitable for upgrading video surveillance systems when existing analog infrastructure needs to be adapted for IP cameras without installing new network cables.


Features:
Transmission of Ethernet data and PoE power over a single two-wire cable.
Suitable for transmitting IP video, audio, alarm and control signals over the network.
The transmission distance can reach 120-200 meters, depending on the cable type, quality and line loss.
Supports data transmission speeds of up to 100 Mbps.
Supports IEEE 802.3af/at PoE standards.
Operates point-to-point using a transmitter and receiver pair.
No polarity needs to be observed when connecting to the 2-pin terminals.
Easy connection: connect the PoE source to the transmitter, connect the transmitter and receiver using the existing two-wire cable, and connect the remote IP device to the receiver.
Flame-retardant plastic housing.
Designed for indoor use.


Technical specifications:
Transmission distance: 120-200 m.
Input voltage: 48-57 V.
Output voltage: 48 V.
Output current: 0.6 A.
Total output power: 15 W.
Data transmission speed: 10/100 Mbps.
PoE standards: IEEE 802.3af/at.
Network interface: RJ45.
Transmission medium: two-wire cable.
Connectors: 2-pin terminals.
Transmission: transmitter-receiver (point-to-point 1:1).
Housing material: flame-retardant plastic.
Operating environment: indoor use.


Warranty: 24 months.
