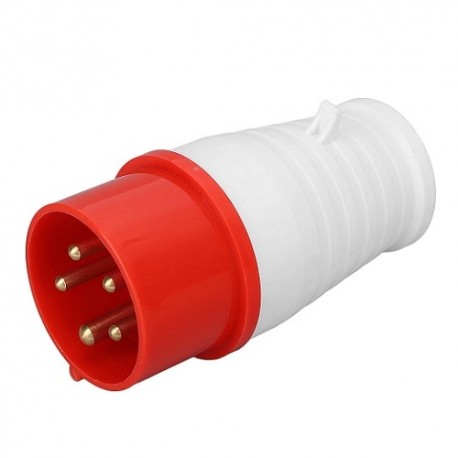

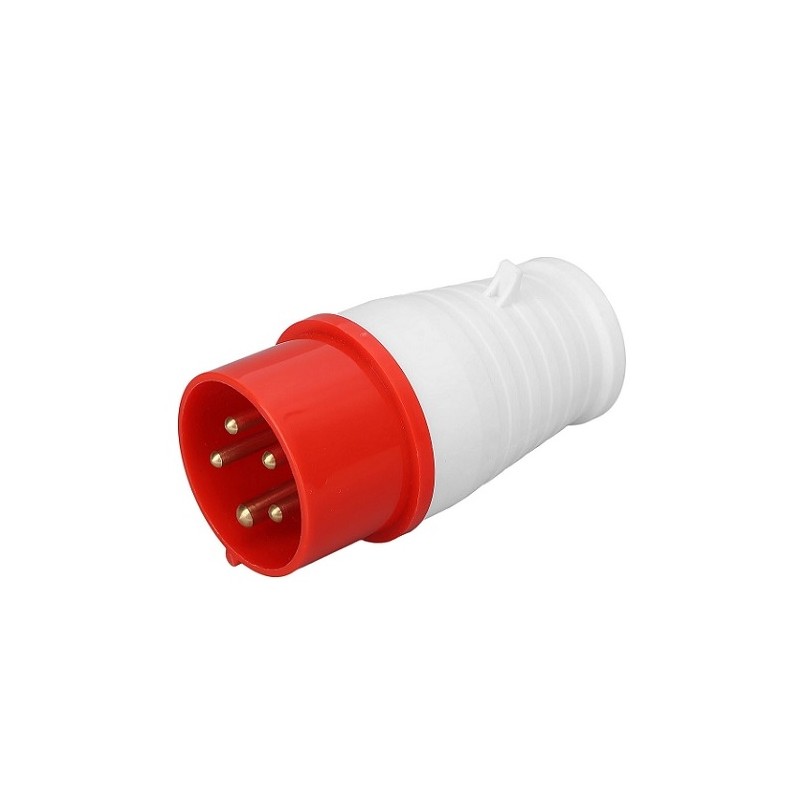

Industrial CEE Plug 32A, 5-Pin, 3-phase, IP44

Industrial three-phase CEE plug 32A, 3P+N+PE, IP44


Features:
Industrial 32A three-phase CEE power plug designed for safe and reliable connection of three-phase electrical equipment to the mains.
The plug has 5 contacts: three phases, neutral, and protective earth (3P+N+PE), and is suitable for equipment requiring a full three-phase power connection.
The standard red CEE three-phase connector is suitable for various three-phase electrical devices, machinery, compressors, construction equipment, generators, extension cables, and other professional equipment, as well as a power connector for portable EV chargers.
This model can be used in the power cables of portable electric vehicle chargers where a suitable red CEE 32A three-phase socket is installed in a garage, workshop, parking area, or other location. When connected to a 400V three-phase mains supply and using 32A on each phase, it can deliver approximately 22 kW of power.
IP44 protection provides protection against solid objects larger than 1 mm, water splashes, and moisture.
The durable insulated housing is suitable for practical use in garages, workshops, warehouses, construction sites, and other workplaces.


Technical specifications:
Rated current: 32A.
Rated voltage: 220-380 V AC / 240-415 V AC.
Connector standard: IEC 60309 (CEE Red).
Connector type: plug (Male), 5-pin.
Conductors: 3P+PE+N.
Max. power: approx. 22 kW (at 400V, 3x32A).
Protection class: IP44.
Colour: red, white.


Warranty: 24 months.
