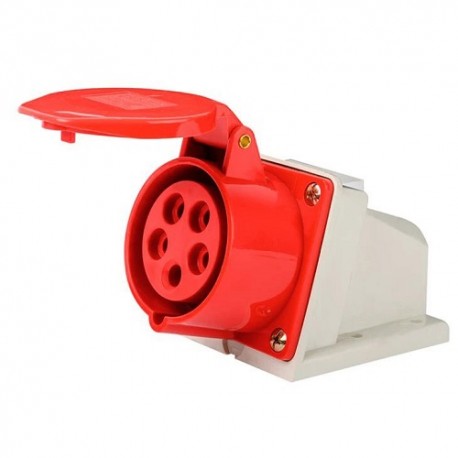

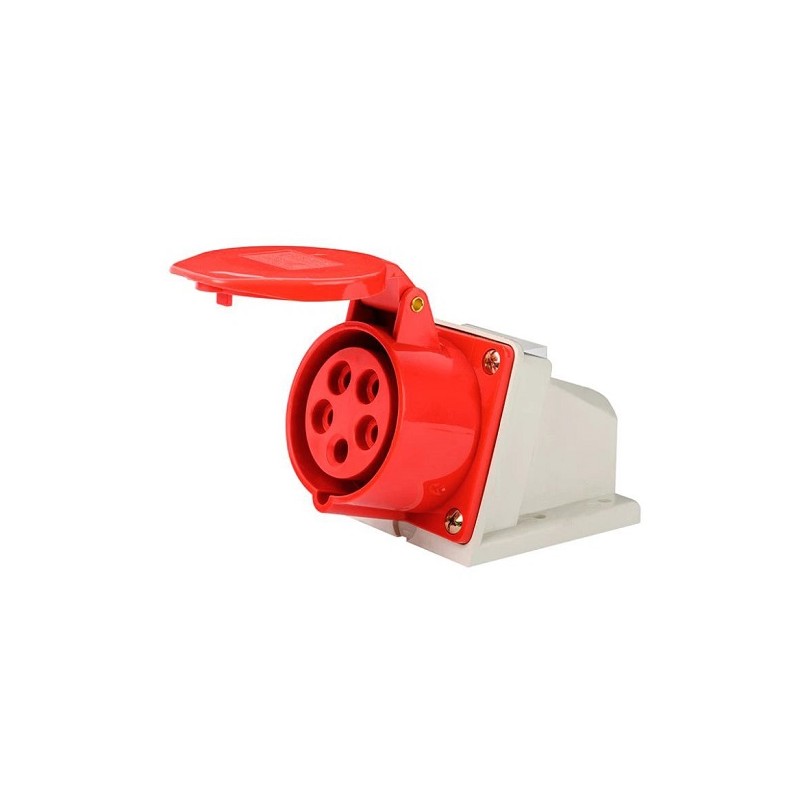

Industrial CEE Wall Socket 32A, 5-Pin, 3-phase, IP44

Industrial Three-Phase CEE Socket 32A, 3P+N+PE, IP44, with Cover


Features:
Industrial 32A CEE-type three-phase socket designed for safe and reliable connection of electrical equipment to a three-phase power supply.
The socket has 5 contacts: three phases, neutral and protective earth (3P+N+PE), making it suitable for equipment requiring a full three-phase power connection.
The standard red CEE connection is widely used for machine tools, compressors, construction equipment, generators, extension cables and other professional electrical equipment. The socket can also be used as a connection point for portable electric vehicle chargers.
When connected to a 400V three-phase power supply and using 32A on each phase, it can provide approximately 22 kW of power.
The IP44 protection rating provides protection against solid objects larger than 1 mm and against splashing water. The socket is equipped with a protective cover that helps protect the contacts from dust, dirt and water splashes when not in use.
The durable insulated housing with protective cover is suitable for practical use in garages, workshops, warehouses, construction sites and other work environments.


Technical specifications:
Rated current: 32A.
Rated voltage: 220-380 V AC / 240-415 V AC.
Connector standard: IEC 60309 (CEE Red).
Connector type: socket (Female), 5 contacts.
Contact configuration: 3P+N+PE.
Max. power: approx. 22 kW (at 400V, 3x32A).
Protection rating: IP44.
Colour: red, white.


Warranty: 24 months.
