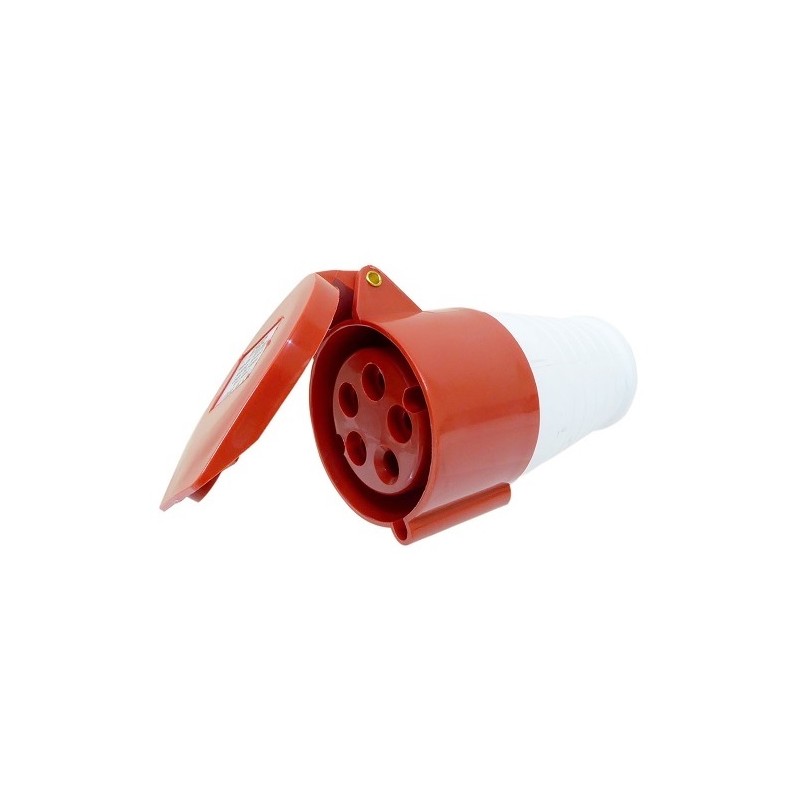

Industrial CEE Connector (Female), 32A, 3-phase, 5-Pin, IP44

Industrial three-phase CEE cable connector / socket 32A, 3P+N+PE, IP44, with cover


Features:
Industrial 32A CEE-type three-phase cable connector / socket designed for safe and reliable connection of three-phase electrical equipment to the mains.
The connector is designed to be attached to a cable and is used for three-phase extension cables, mobile electrical equipment power cables, and other cable connection applications.
The socket has 5 contacts: three phases, neutral, and protective earth (3P+N+PE), making it suitable for equipment requiring a full three-phase power connection.
The standard red CEE connector is widely used for connecting machinery, compressors, construction equipment, generators, extension cables, and other professional electrical equipment. It can also be used in the power cables of portable electric vehicle chargers.
When connected to a 400V three-phase mains supply and using 32A on each phase, it can deliver approximately 22 kW of power.
The IP44 protection rating provides protection against solid objects larger than 1mm, water splashes, and moisture. The socket has a protective cover that helps protect the contacts from dust, dirt, and water splashes when the connector is not in use.
The durable insulated housing with protective cover is suitable for practical use in garages, workshops, warehouses, construction sites, and other workplaces.


Technical specifications:
Rated current: 32A.
Rated voltage: 220-380 V AC / 240-415 V AC.
Connector standard: IEC 60309 (CEE Red).
Connector type: cable connector / socket (Female), 5-pin.
Conductors: 3P+PE+N.
Max. power: approx. 22 kW (at 400V, 3x32A).
Protection class: IP44.
Colour: red, white.


Warranty: 24 months.
